GlassLift 680

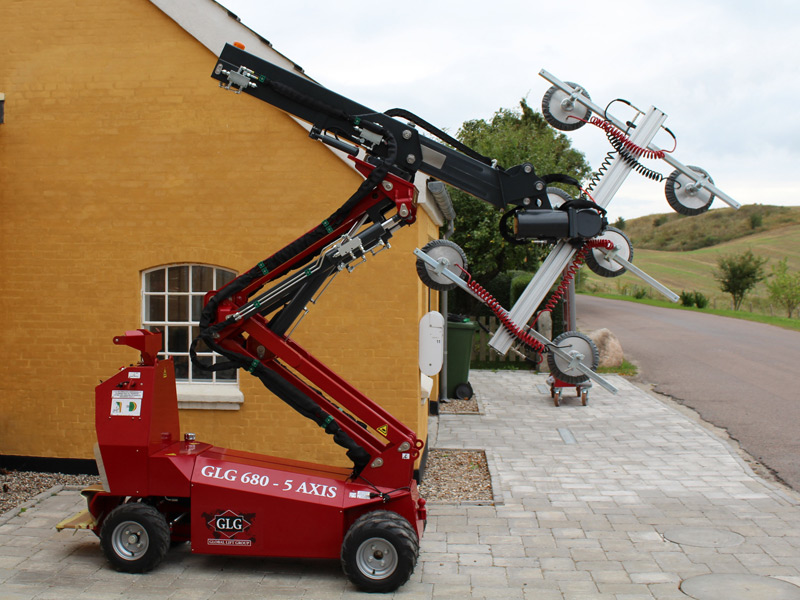

With a maximum capacity of 680kg the GLG 680 is in a class of its own. With its 3D manipulation there is little this robot cant achieve in the Glazing Robot industry.
Key features
- 5-Axis Hydraulic Operation: 1. Straight Up / Down 2. Rotate Left / Right 3. Tilt Forward / Backward 4. SideLoad Left / Right 5. Telescope In / Out
- 3D Manipulation - Ability to Manipulate Materials 360 degrees in all Directions
- Lift Capacity of 680kg
- Lift Height of 2450mm
- Precision Hydrostatic Drive and Power Steering

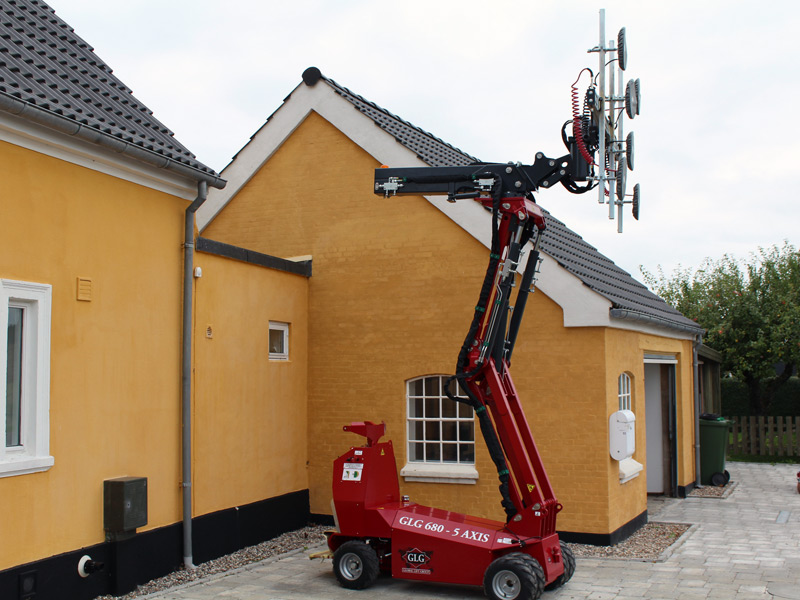

- Upper Arm Can Mount Objects Up to 4M height with precision
- Up to 16 Hours of Autonomy thanks to 4x6V = 24V Power Pack
- Counterweights 6.3kg each
- Introductory Pricing Special
| Column title | Column title |
|---|---|
| Loading capacity: | 680 kg |
| Overall weight: | 1675 kg |
| Minimum width: | 845 mm |
| Machine length: | 2645 mm |
| Boom length: | 1808 mm |
| Autonomy: | 16 Hours |
| Charge voltage: | 110 or 230 V |
| Battery: | 4 x 6V - 24V |
| Charging time: | Approx. 8 hours |
| Wheels: | Filled Rubber Foam |
