JF 545

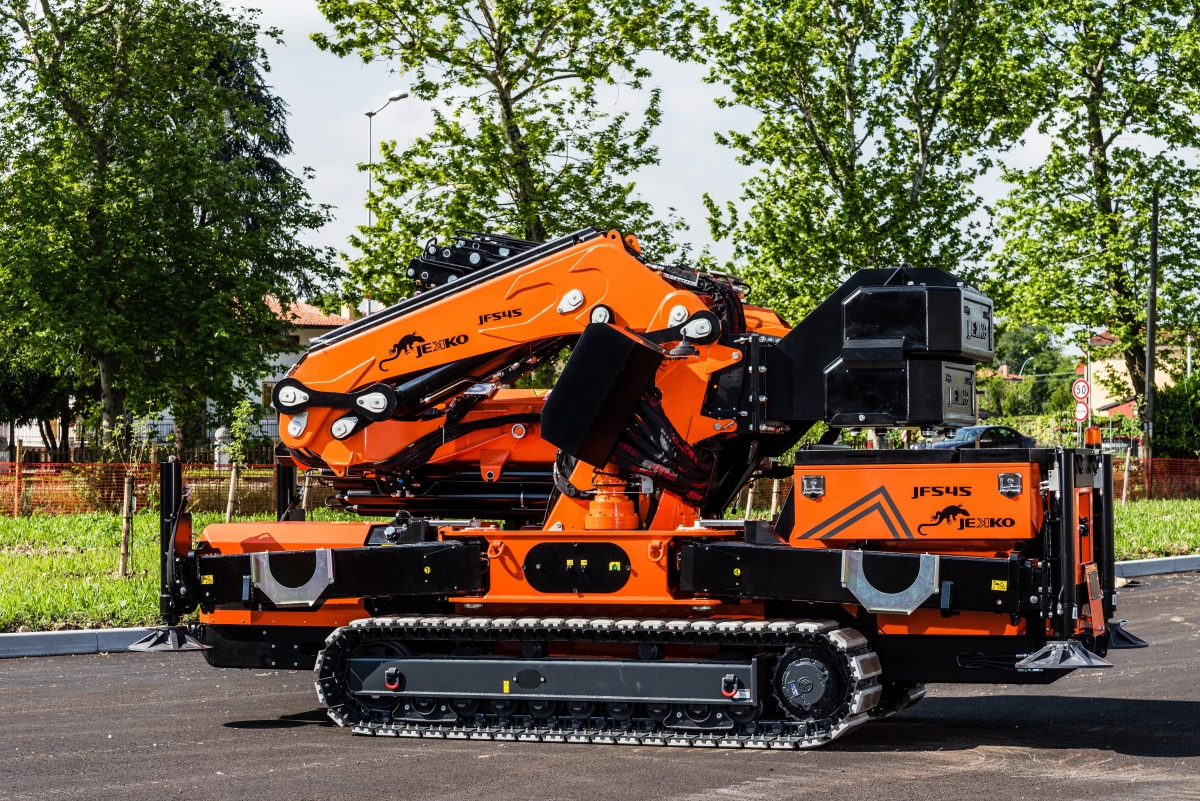

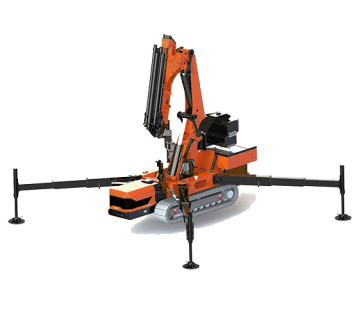

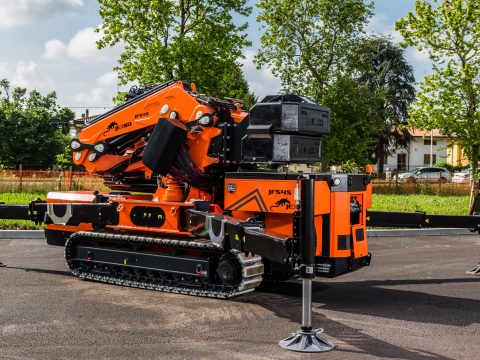

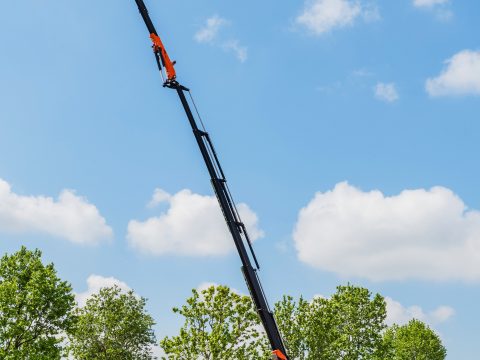

The Jekko JF545 articulated crawler crane is a new and highly innovated product in the crane hire and sales industry. With a maximum SWL of 15.5 ton, maximum working height of 30m and maximum radius of 28m this crane is a spectacular piece of design and engineering including multi rigger positions and de-mountable ballast as standard.
Key features

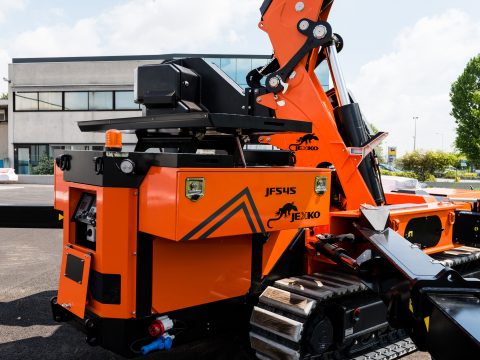

- Power Pack

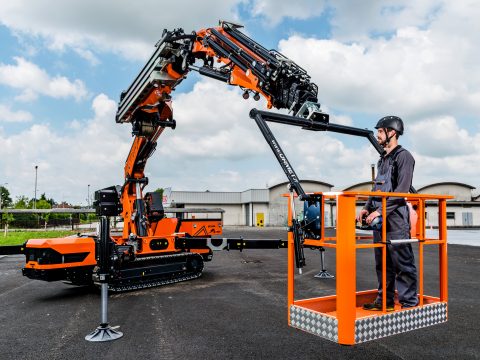

- Man Basket
- Towing Winch
- Low Marking White Tracks
- Liquid Cooling
| Column title | Column title |
|---|---|
| Counterweight | 3500 |
| Hookblock / Capacity | 15500 |
| Jib | JIBL426 1200 |
| Basket | 200 |
| Engine | KUBOTA V3307-DI-T-E3B |
| Diesel Fuel | Yes |
| Power | 55,4kW |
| Main Winch | 2600 kg |
| Max Outrigger Load | 11250 kg |
| Max Track Load | 0,85 kg/cm2 |
| Travel Speed | 2,5 km/h |
| Gradeability | 30° |
